Our portfolio covers PS solutions for foam boards, wall and ceiling panels, picture frame mouldings, and decorative profiles. Built for high-gloss surfaces, stable foaming, and efficient speeds, these polystyrene lines pair precise melt control with flexible downstream options. From single-layer sheet to co-extruded caps with in-line lamination or UV coating, configurations target consistent quality and low scrap across GPPS and HIPS.
Choose sheet systems for GPPS/HIPS, wall panel extrusion with in-line printing or lamination, and profile lines for picture frames and trims in foamed or solid structures. Modular options include single-screw extruders, co-extruders for color caps, online embossing, and automatic cutting and stacking. This covers both high-throughput sheet needs and precision profiles.
Polystyrene provides high surface gloss, dimensional stability, and strong decorative finishing. Our lines turn these properties into sharp profile details, stable foam expansion, and clean cutting. The result is shorter post-processing and improved yield.
Optimized single-screw extruders deliver gentle shear and stable throughput for GPPS/HIPS sheets and profiles. Optional co-extruders add cap layers and color effects. Foam technology supports physical foaming with controlled cells through precise temperature zoning and closed-loop control. Integrated thickness feedback, synchronized haul-off/cutting, and recipe libraries reduce changeover and support repeatable quality.
Systems scale from compact profile platforms to high-capacity sheet lines. Typical layouts include a single-screw extruder (65–120 mm), filtration, optional gear pump, and a sheet die with calender or a profile die with calibration. Haul-off, cutting, and stacking or winding are coordinated by centralized controls for real-time parameter management.
For GPPS/HIPS sheets, widths up to 1200–2100 mm and thickness from 0.2–6.0 mm are supported. Outputs of approximately 200–800 kg/h depend on extruder size. Calender options include three-roll vertical or inclined stacks, with edge trimming and automatic winding. Foamed variants enable low-density, lightweight sheets with uniform cells and high gloss.

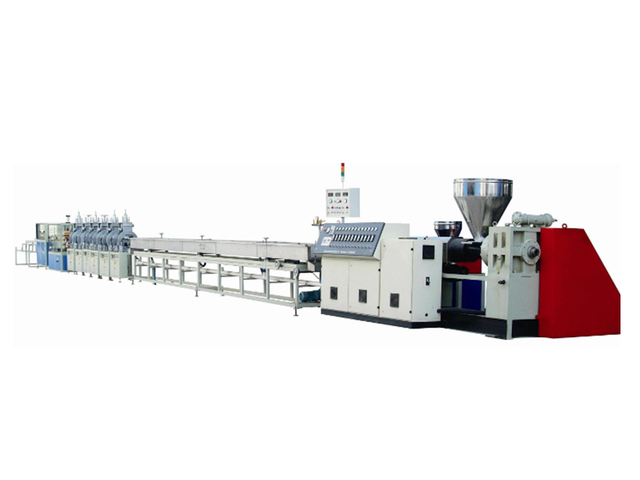

For solid and foamed profiles, typical outputs range from 80–250 kg/h. Calibration tables of 4–8 m and multi-caterpillar haul-offs maintain steady traction. Engineered dies and vacuum calibration deliver sharp corners and controlled foaming. Inline wrapping or lamination achieves woodgrain, marble, or metallic looks, with optional UV topcoat.

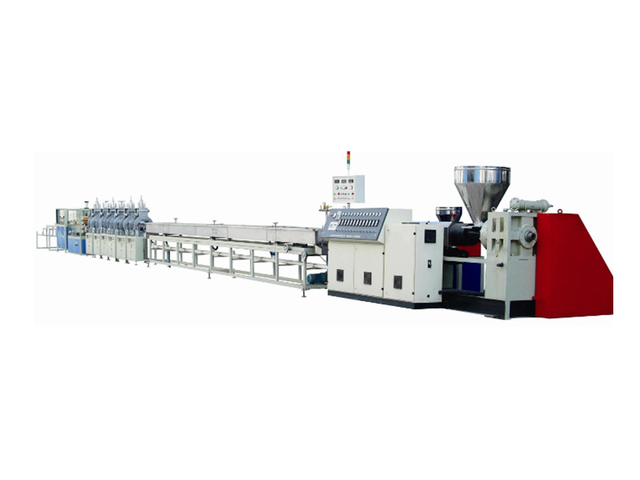

Panel widths of 200–600 mm and thicknesses of 5–12 mm are supported for interior wall and ceiling use. Outputs typically reach 150–400 kg/h. Options include inline embossing, printing, or lamination. Co-extruded cap layers improve color uniformity and scratch resistance, and precision cutting keeps panel lengths consistent.
We provide on-site assessment, layout and utilities planning, line selection, and custom screw/barrel and die designs for your grades. Full trial runs with your materials validate throughput, foaming ratios, and surface quality before shipment. Installation, commissioning, and operator training are included. Contact PS production line manufacturer for a tailored plan and quote.
Application engineers tune melt temperature, line speed, and cooling to lock in repeatable results. Trials document product specs and energy use, creating ready-to-run recipes that speed ramp-up and help reduce scrap.
Select hardened screws and barrels, precision sheet or profile dies, gear pumps, and advanced calender stacks. Automation options include Siemens PLC/HMI, ABB drives, closed-loop thickness control, and remote diagnostics. Downstream modules cover embossing, lamination/wrapping, UV coating, edge trimming, flying saws, and stacking or winding.
Modular skids shorten installation and simplify start-up. Recipe management minimizes changeovers between sheet gauges or profile molds. Energy-efficient drives and optimized heating zones support lower operating costs. Stable foaming and synchronized downstream help control surface defects and edge scrap for higher usable yield.
Compatible with GPPS and HIPS grades for clarity or impact resistance, these systems produce signage sheets, clamshell-grade boards (post-lamination), interior wall panels, and decorative profiles such as picture frames, skirting, and trims. Optional antistatic or matte finishes and patterned embossing extend use to retail fixtures and interior décor.
Each line is built and tested under a certified quality system with traceable components and documentation. CE conformity, factory acceptance tests with your materials, and comprehensive manuals support dependable start-up and consistent performance.
Q: Which materials are supported?
A: GPPS and HIPS, with tailored screws and die designs for sheets and profiles, including foamed variants.
Q: Can the line handle foamed and solid products?
A: Yes. Recipe control adjusts density and cell structure, and changeover to solid modes is quick.
Q: What is the typical lead time?
A: Standard configurations are typically available within 60 days. Custom lines are scheduled through our digital production system.
