Auxiliary Equipment for Plastic Extrusion Lines

Auxiliary systems for plastic extrusion stabilize throughput, improve dimensional control, and extend uptime on PVC, WPC/WPE, PE, PPR, PS, sheet/board, and recycling lines. Turnkey downstream packages cover every step from feeding to packaging, with CE-conforming components and intelligent control.

Category Highlights

Built in Kunshan and shipped via Shanghai/Ningbo, with typical lead times within 60 days. Patented designs, Siemens/ABB electrics, and ISO 9001:2015 processes support reliable operation. Capacity exceeds 120 complete lines per year. We tailor solutions to your formulation and validate performance before shipment.

Complete Range of Downstream Equipment

A modular range spans material handling, melt filtration and pressure control, cooling/calibration, cutting/finishing, stacking/winding, and recycling support. Select modules to match panels, profiles, pipes, sheets/boards, or pellets.

Material Handling & Feeding

Gravimetric Dosing & Blending

Recipe control and anti-bridging design deliver ±0.3–0.5% accuracy and faster changeovers.

Hopper Dryers & Dehumidifiers

Closed-loop dehumidification and insulated hoppers limit moisture defects in hygroscopic and WPC compounds.

Vacuum Loaders & Central Conveying

Wear-resistant loaders and sealed networks automate multi-extruder supply with minimal contamination.

Melt Filtration & Pressure Control

Screen Changers (Manual/Automatic)

Options for high-fill and recycled streams maintain stable pressure with minimal interruptions.

Melt Pumps

Precision pumps smooth flow for better gauge control on sheets, boards, and thin-wall profiles.

Cooling & Calibration

Vacuum Calibration Tables

Multi-zone vacuum and rigid stainless frames achieve tight tolerances on profiles and thin-walled pipes.

Spray/Cooling Tanks

SUS304 spray or immersion tanks with optimized circuits enable uniform, water-saving cooling.

Haul-offs (Belt/Caterpillar)

High-traction designs and synchronized drives reduce slippage and ovality across products.

Cutting, Embossing & Surface Treatment

Planetary Cutters & Saws

Synchronized motion produces burr-free pipe ends and accurate cuts on profiles and sheets.

Embossing & Brushing

Temperature-stable rolls and brushing deliver consistent textures with quick-change patterns.

Corona Treaters & Edge Trimmers

In-line corona improves adhesion; adjustable trimmers hold width tolerance and cut scrap.

Stacking, Winding & Conveyors

Stackers & Tilting Tables

Non-marking belts and programmable patterns protect glossy sheets and foamed boards.

Coil Winders

Tension control forms tight, defect-free coils with auto cut/splice options.

Discharge Conveyors & Buffers

Modular conveyors decouple steps to stabilize QA and changeovers.

Recycling & Granulation Support

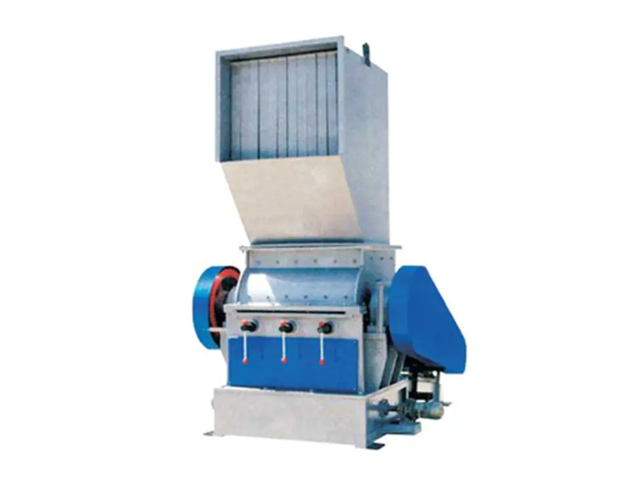

Shredders, Washers, Dryers

Robust size reduction and friction/thermal drying remove contaminants and moisture before reprocessing.

Pelletizers & Degassing

Underwater or strand pelletizers with vacuum degassing produce consistent pellets with lower volatiles.

Technical Features & Options

Intelligent control: PLC/HMI with data logging, alarms, and recipes synchronizes with line speed and melt pressure; open protocols enable line-wide monitoring. Build and safety: Siemens/ABB electrics, quality hydraulics, stainless contact parts, and guarded mechanisms support continuous operation. Efficiency: variable-speed drives, heat recovery, and closed-loop water systems help reduce utilities. Compatibility: calibrated designs handle rigid/flexible PVC, wood-filled composites, and polyolefins with quick-change kits.

Typical Specifications & Parameters

• Calibration tables: 4–9 m, multi-zone vacuum up to −0.08 MPa, fine leveling.


• Haul-off: up to 60 kN pull, 0.2–20 m/min speed range.


• Cutting: planetary pipe cutting to 630 mm OD; sheet/profile widths to 2100 mm, ±0.5–1.0 mm accuracy.


• Dosing: ±0.3–0.5% accuracy, 50–1500 kg/h throughput.

Applications & Use Cases

• PVC wall/ceiling panels: embossing, vacuum calibration, soft-stack handling to protect gloss and gauge.


• PVC profiles (windows/doors/trims): precise cooling, haul-offs, and saws to maintain edges and dimensions.


• Pipes (PE, PVC, PPR): filtration, sizing, cooling, haul-offs, and planetary cutters for roundness and clean ends.


• WPC/WPE decking/fencing: dehumidifying dryers, robust haul-offs, and texturing for filled compounds.


• PVC sheet/board and PS foam: melt pumps, wide cooling, accurate cutting, and stackers for flatness and finish.

How to Select Auxiliary Equipment

• Throughput and speed: match cooling capacity, haul-off power, and winder tension to peak rates.


• Dimensional accuracy and surface: use multi-zone calibration, pressure control, and clean cutting for tight specs.


• Formulation and moisture: specify drying, dosing precision, and filtration for hygroscopic or filled materials.


• Footprint, utilities, budget: choose modular units that fit your layout and scale with demand.

Compliance & Quality Assurance

Produced under ISO 9001:2015 with CE conformity. OEM certificates for Siemens/ABB electrics and branded hydraulics support traceability and uptime.

Ready-to-Order Auxiliary Packages

• Panel line package: dosing, dryers, calibration, cooling, haul-off, embossing, precision saw, soft stacker.


• Profile line package: filtration, multi-zone calibration, cooling, haul-off, high-speed saw, conveyors.


• Pipe line package: screen changer, melt pump, vacuum sizing, cooling tanks, caterpillar haul-off, planetary cutter.


• Sheet/board package: melt pump, wide cooling, trimming, high-accuracy cutting, stacker.


• Recycling/granulation support: shredders, washing/drying, degassing, pelletizer modules.

Request a Quote

Get a tailored auxiliary equipment proposal with layout, utilities, and performance targets. Typical delivery is within 60 days from our Kunshan facility. Contact our auxiliary equipment supplier team to discuss your product specs and receive an integrated plan.
