Product Introduction

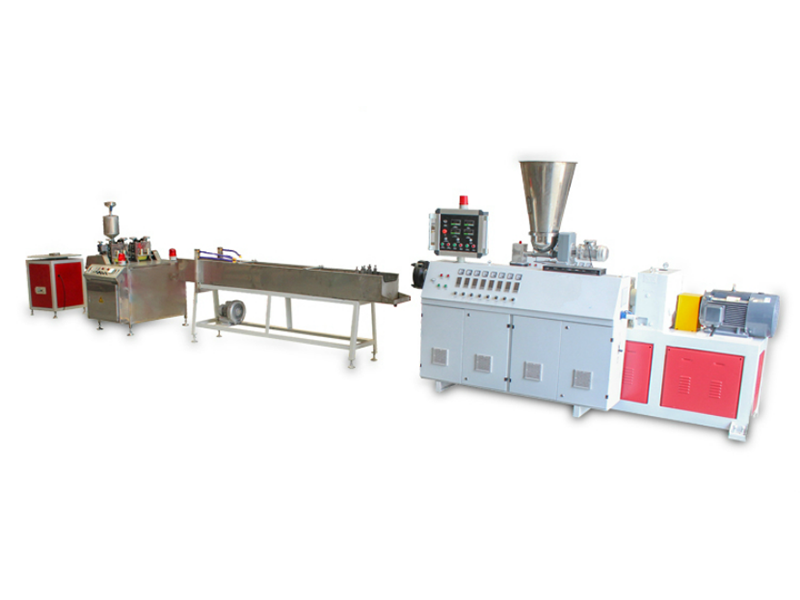

The PVC edge banding extrusion line is a continuous production system for manufacturing edge bands used in furniture, cabinetry, and panel processing. It processes PVC compound through extrusion, calibration, embossing, cooling, and automatic winding to produce flexible, durable strips with precise thickness (0.3-3mm) and various surface finishes. The line ensures high output, consistent quality, and efficient material utilization.
Product Advantage
1.High-Speed Precision Extrusion
Our line features a high-performance single-screw extruder with optimized screw design, ensuring uniform plasticization and stable melt pressure. It achieves production speeds of 25-40 meters/minute with thickness tolerance controlled within ±0.05mm, delivering consistent quality for high-volume orders.
2.Multi-Color Co-Extrusion Capability
Integrated co-extrusion technology allows simultaneous production of multi-layer or multi-color edge bands in a single pass. This enables creating products with decorative surface layers, abrasion-resistant top coats, or matching base colors, expanding product variety and market competitiveness.
3.Advanced Embossing & Surface Treatment
The line incorporates precision embossing units that create realistic wood grains, matte finishes, or glossy surfaces with pattern depth accuracy of 0.1-0.3mm. Surface treatment options include UV coating or corona treatment, enhancing adhesion for subsequent printing or painting processes.
4.Efficient Cooling & Winding System
Multi-stage water cooling tanks ensure rapid and uniform cooling, preventing deformation and maintaining dimensional stability. The automatic dual-station turret winder enables continuous operation with zero downtime during roll change, achieving winding tension control within ±2% for perfectly wound coils.
5.Energy-Saving & Automated Control
Equipped with variable frequency drives and optimized heating zones, the line reduces energy consumption by 15-20% compared to conventional designs. The centralized PLC with touch-screen HMI enables one-touch recipe storage and recall, minimizing changeover time and operator intervention.
Technical Parameters
| Model | SJZ 65/28 or 51/105 |
| Extrusion Motor Power | 22kW/h |
| Production Speed | 10-20 m/min |
| Panel Width | (Adjustable via die) |
| Heating Zones | 7-12 heating zones per extruder (PID temperature control) |
| Cooling Method | Multi-stage vacuum calibration + water spray cooling |
| Electrical Companies | Inovance, Fuji, Schneider Electric, Siemens |
Product Uses

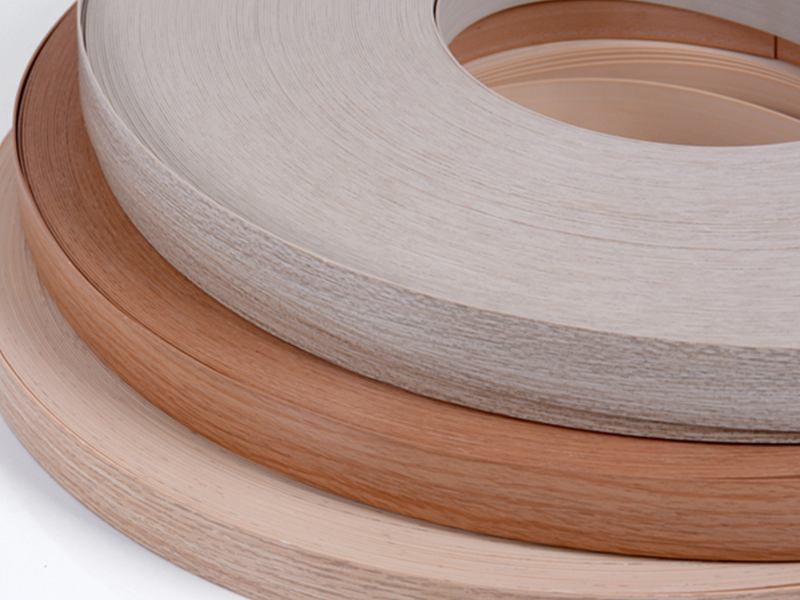

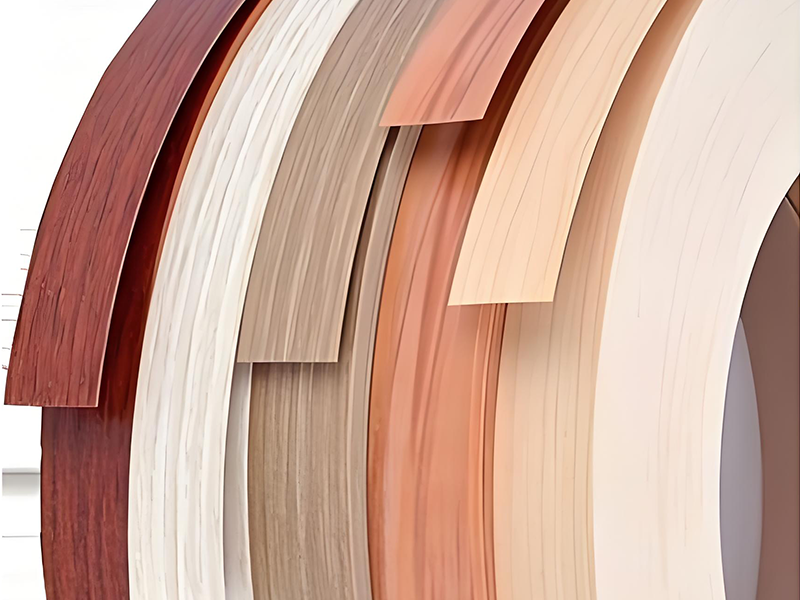

PVC edge bands are widely used to seal and decorate the raw edges of particleboard, MDF, and plywood in furniture production. They provide a seamless finish for tabletops, shelves, drawers, and cabinets, protecting against moisture and mechanical damage.
