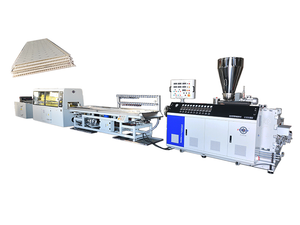

PVC Fluted Panel Machine

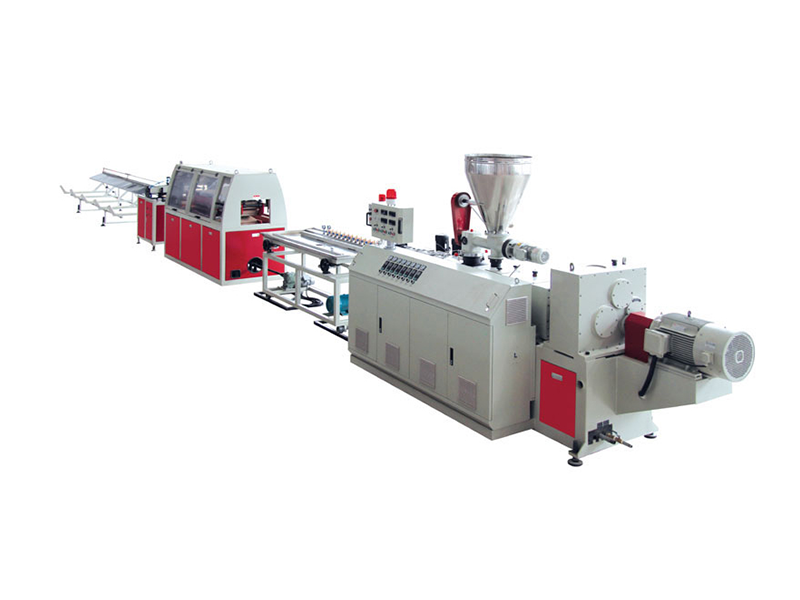

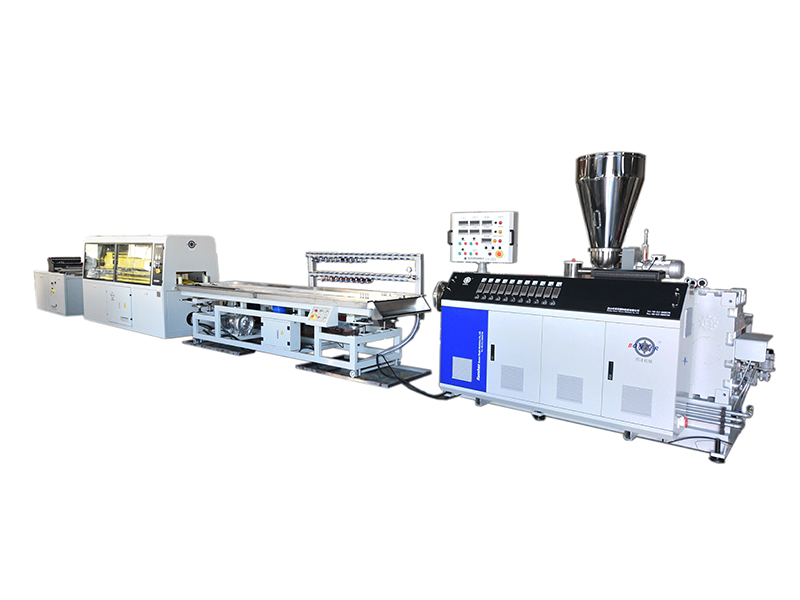

Our PVC fluted panel production line is a fully automated, high-precision manufacturing system designed for the continuous and efficient mass production of durable, lightweight PVC fluted sheets. This integrated line seamlessly executes the complete process from raw material feeding and extrusion to vacuum cooling calibration, precise longitudinal cutting, length cutting, and automatic stacking. It specializes in producing panels with uniform, consistent flutes (corrugations) that provide excellent strength-to-weight ratios and visual appeal. The final products are widely used in applications such as decorative wall cladding, signage backgrounds, partition panels, and protective packaging. With its stable output, user-friendly controls, and energy-efficient design, this production line empowers manufacturers to achieve high productivity and consistent quality, meeting diverse market demands for versatile PVC fluted panels.

Our PVC fluted panel production line is engineered for precision, efficiency, and versatility, delivering high-quality panels with consistent flute profiles. It integrates advanced automation and energy-saving technologies to maximize output and minimize operational costs. Below are its core strengths and technical highlights.

1. High-Speed Precision Flute Formation

This line features a specialized multi-stage vacuum calibration system that ensures sharp, uniform, and consistent flute geometry. It achieves production speeds of up to 10-15 meters per minute while maintaining flute depth and width tolerances within ±0.2 mm, guaranteeing superior structural stability and visual consistency.

2. Advanced Co-Extrusion Capability

Equipped with dual extrusion technology, it allows simultaneous layering of a premium UV-resistant surface over a rigid PVC core. This enhances weather and impact resistance, extending product lifespan outdoors to over 10-15 years without color fading or structural degradation.

3. Fully Automated Cutting & Stacking

Integrated servo-driven longitudinal slitting and transverse cutting units ensure clean, burr-free edges with a cutting accuracy of ±0.3 mm. The automated stacking system organizes panels efficiently, reducing manual labor and minimizing surface scratches during handling.

4. Energy-Efficient & Stable Operation

With frequency-conversion drives and optimized heating zones, the line reduces energy consumption by 20% compared to conventional models. Intelligent temperature control minimizes thermal variation, ensuring stable output quality and lowering long-term operational costs.

5. Quick Changeover for Versatile Output

The modular design allows rapid mold and profile changes, enabling production of various flute heights (e.g., 2mm to 10mm) and panel widths within 30-45 minutes. This flexibility supports diverse applications from interior décor to exterior cladding.

Application Scenarios of PVC Fluted Panel Production Line

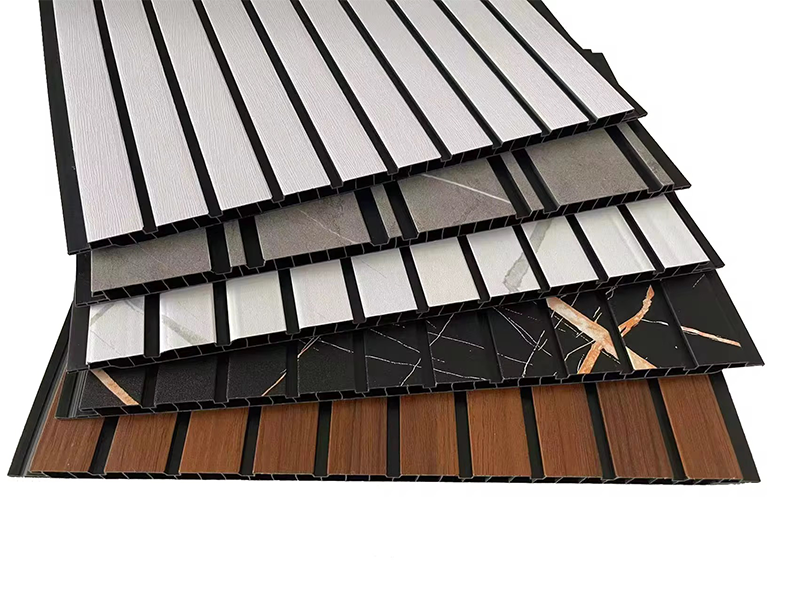

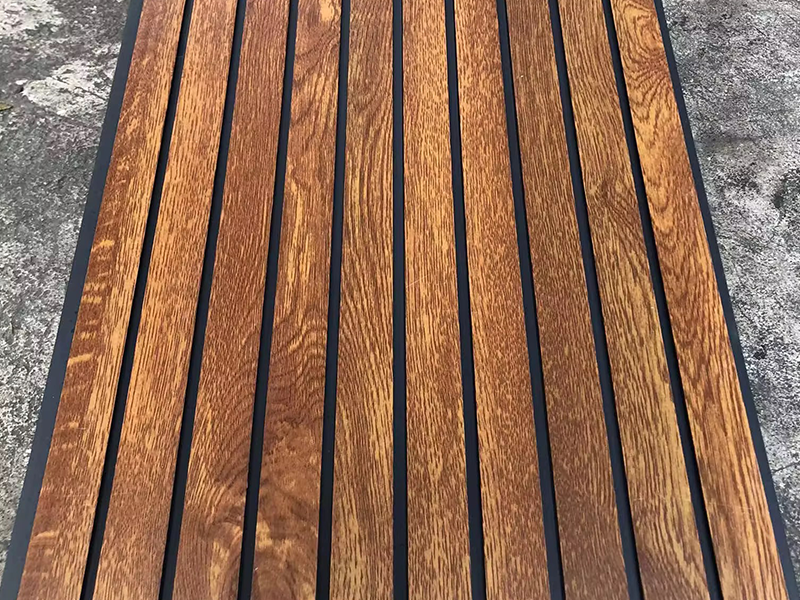

Decorative Interior & Exterior Cladding

Produces durable, weather-resistant panels for modern facade designs, signage backdrops, and feature walls in commercial buildings, retail spaces, and residential properties.

Partition & Display Systems

Manufactures lightweight yet rigid panels for office partitions, exhibition booths, trade show displays, and retail shelving, offering easy assembly and a clean aesthetic.

Advertising & Signage Industry

Supplies uniform fluted sheets as substrates for large-format printing, outdoor signs, and lightboxes, ensuring excellent surface flatness and durability.

Packaging & Protective Material

Produces custom-sized fluted panels for industrial packaging, product protection, and reusable transit containers, combining impact resistance with cost efficiency.

Agricultural & Temporary Structures

Enables the production of corrosion-resistant panels for greenhouse covers, livestock partitions, and temporary outdoor shelters, suitable for humid or harsh environments.
