Product Introduction

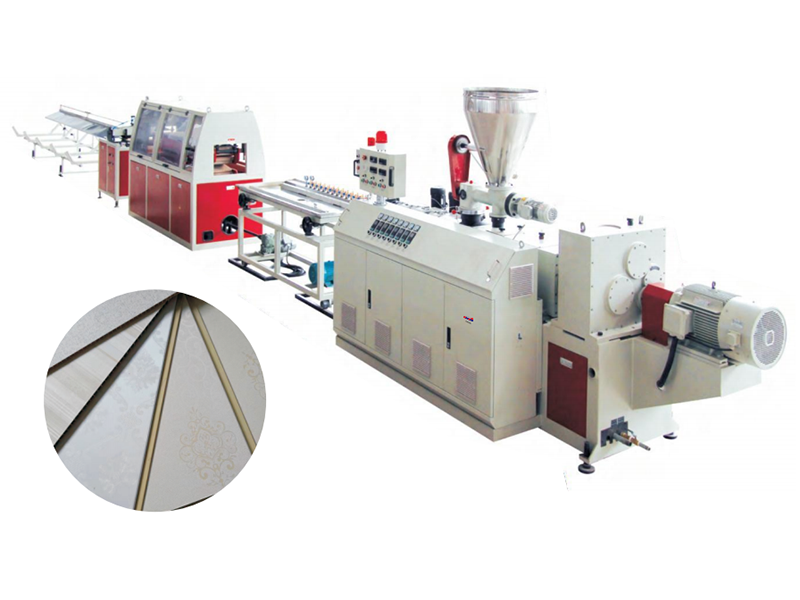

65/132 Extruder Bamboo-Wood Fiber Foamed Wall Panel Production Line is an integrated system designed for manufacturing eco-friendly interior decorative wall panels. Using bamboo-wood fiber and polymers as raw materials, the line performs high-temperature mixing, precision extrusion, online foaming, shaping, embossing, and synchronous cutting to continuously produce lightweight, insulating, moisture-resistant panels with natural wood-grain effects, suitable for fast-track renovation and high-end interior projects.
Product Advantage
1 High-Efficiency Foaming & Stable Extrusion
Our production line is powered by a specially designed 65/132 parallel twin-screw extruder, optimized for processing bamboo-wood fiber composite materials. It achieves uniform mixing and precise control of foaming density, with a density range adjustable between 0.5-0.8 g/cm³. This ensures lightweight yet structurally stable panels, ideal for interior wall applications.
2 Multi-Stage Shaping with Authentic Surface Textures
The line incorporates precision embossing rollers and multi-stage calibration units to produce panels with high-definition wood-grain or stone textures. Surface patterns are embossed during continuous production, eliminating the need for secondary processing. The system achieves pattern transfer accuracy of over 95%, delivering a natural and aesthetically pleasing finish.
3 Energy-Saving & Continuous Online Production
Integrated online foaming technology reduces energy consumption by up to 25% compared to traditional processes. The continuous production flow—from raw material feeding to automatic cutting—ensures consistent output of 10-15 meters per minute. This enhances productivity while lowering unit manufacturing costs.
4 Eco-Friendly Material Utilization & Low VOC Emission
The line supports up to 60% bamboo-wood fiber content in raw materials, promoting sustainable resource use. Advanced venting and compounding systems ensure low VOC emissions, with finished panels meeting international eco-certification standards such as E0/E1 grade, making them safe for indoor environments.
Technical Parameters
| Production Line | SJZ65/132+YF300 |
| Power Supply | 380V, 50Hz, 3-phase or customized |
| Extruder | SJZ65/132 |
| Screw Diameter | Ø 65/132mm |
| Heating Power | 4 zones, total 19kw, 50-300°C |
| Main Motor Power | 37kw |
| Extruder Dimension | 4250*1500*2150mm |
| Extruder Weight | 3500kg |
| Output | 150-200kg/h |
| Max Product Width | 300mm |
Product Uses
1 Interior Decoration for Commercial and Residential Spaces

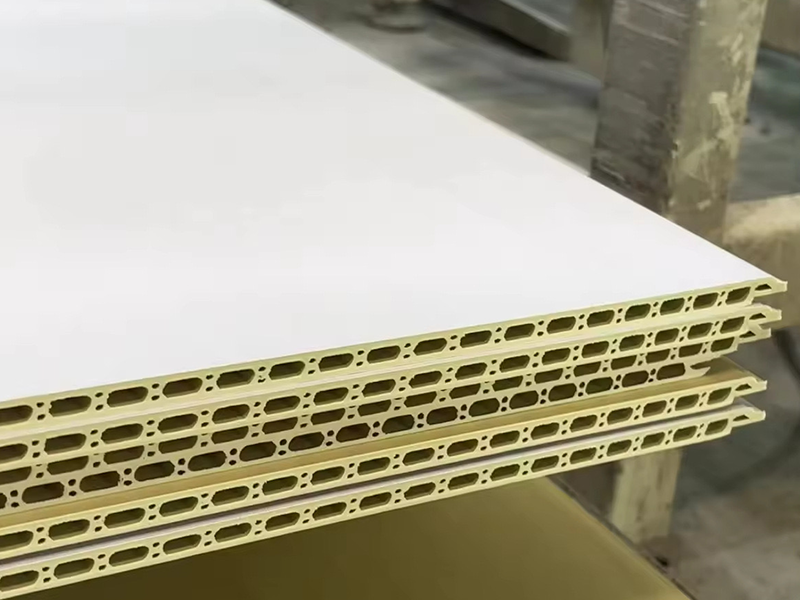

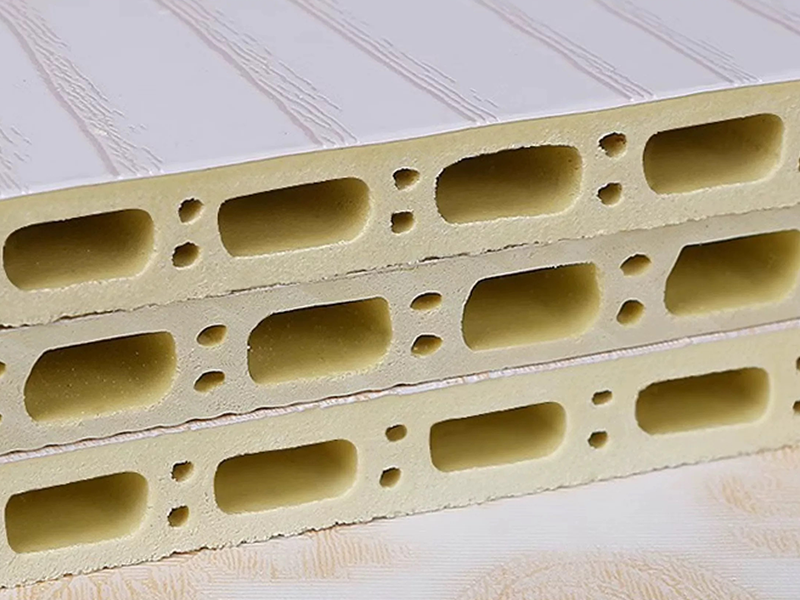

This production line manufactures lightweight and aesthetically pleasing wall panels ideal for hotels, offices, apartments, and retail stores. The panels' authentic wood-grain finish and ease of installation make them perfect for feature walls, ceilings, and partition systems.
2 Renovation and Fast-Track Construction Projects
The produced panels enable quick and clean installation, significantly reducing renovation time. They are widely used in home remodeling, office upgrades, and modular construction due to their durability, moisture resistance, and compatibility with existing structures.
3 Specialized Applications in High-Traffic Areas
These eco-friendly panels are suitable for hospitals, schools, and public facilities where hygiene and low maintenance are priorities. Their fire-retardant and easy-to-clean surfaces meet stringent safety and health standards, ensuring long-term reliability.
