Product Introduction

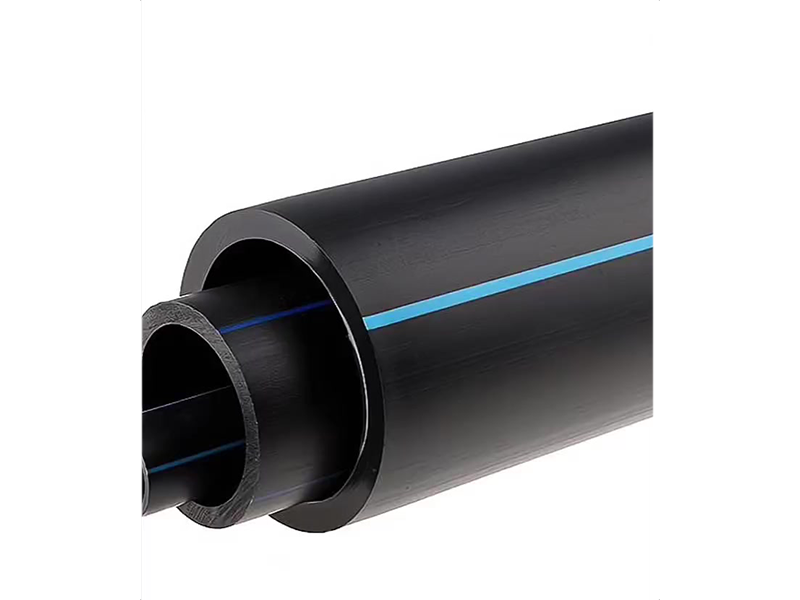

PE pipes (Polyethylene pipes) are high-performance thermoplastic pipes widely used in municipal engineering, construction, agriculture, and industrial piping systems.
Made from high-density polyethylene (HDPE) materials such as PE80 and PE100, these pipes are known for light weight, chemical resistance, excellent toughness, and long-term durability.
They are suitable for urban water supply and drainage, gas transmission, agricultural irrigation, slurry transport, and protective conduits for electric and telecommunication cables.
Product Advantage

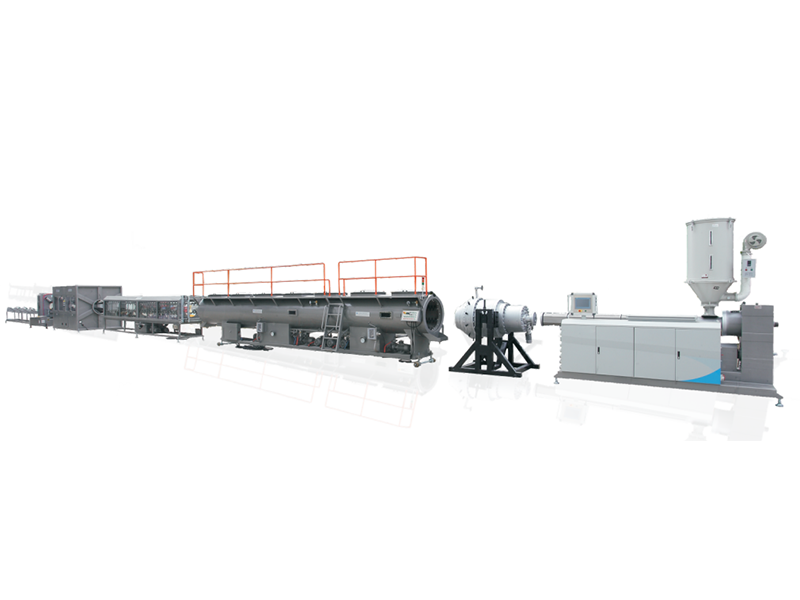

1 High-Capacity, Energy-Efficient Extrusion
Our line features a high-torque, deep-channel single-screw extruder specifically designed for HDPE/MDPE materials. It achieves stable output rates of 80-120 kg/h while reducing energy consumption by up to 15% through optimized screw design and barrel heating, ensuring cost-effective production of pressure pipes and gas conduits.
2Advanced IBC Cooling for Superior Pipe Quality
Equipped with an Internal Bubble Cooling (IBC) system, the line precisely controls pipe dimensions and improves inner wall smoothness. This system ensures consistent wall thickness with tolerances within ±2%, critical for achieving high-pressure ratings (up to PN25) and long-term structural integrity.
3 Fully Automated Synchronized Control
An integrated PLC system synchronizes extrusion speed, haul-off tension, and cutting with precision. The servo-driven caterpillar haul-off maintains stable pulling force, while the orbital cutter achieves length accuracy within ±1 mm. This automation guarantees uniform pipe quality and minimizes human error.
4 Durability with Low Maintenance Design
Built with wear-resistant screws, nitrided barrels, and heavy-duty haul-off tracks, the line supports 24/7 continuous operation. Key components are rated for over 20,000 hours of service, and the modular design simplifies maintenance, ensuring high uptime and reduced lifecycle costs.
5 Versatility for Multi-Layer Pipe Production
The modular design allows integration of co-extrusion units for producing multilayer pipes (e.g., barrier layers for gas pipes). It supports quick size changes for diameters ranging from 20 mm to 1200 mm, enabling flexible adaptation to diverse market demands.
Technical Parameters
| Parameter | Typical Value | Notes |
| Material Grade | PE80 / PE100 | HDPE resin conforming to ISO 4427 / EN 12201 |
| SDR Range | SDR11 – SDR33 | Determines pressure capacity |
| Pressure Rating | PN6 – PN20 | Up to 2.0 MPa depending on SDR |

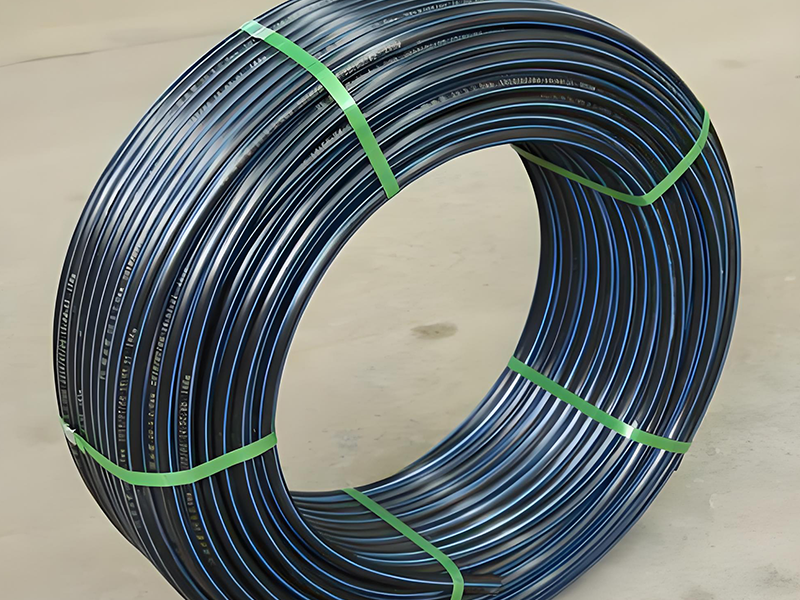

| Diameter Range | 16 mm – 1600 mm | Coiled or straight lengths |

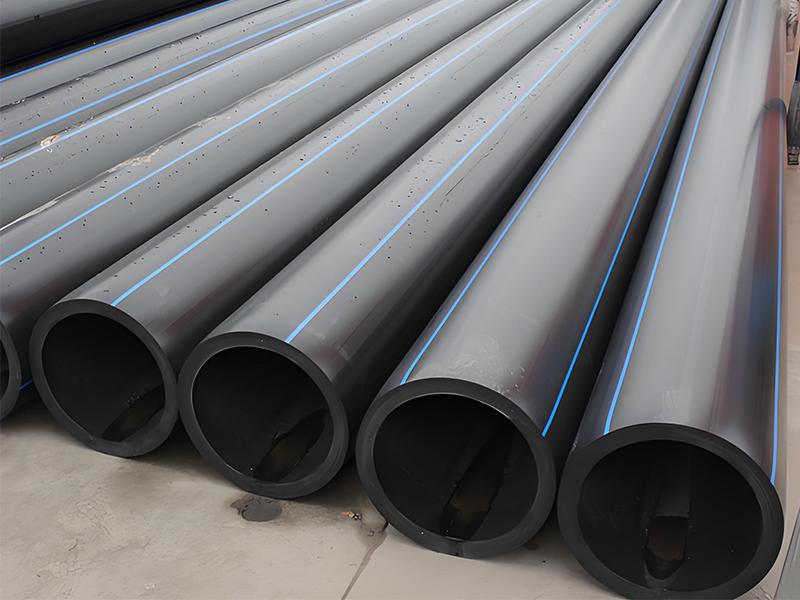

| Color | Black (with blue or yellow stripes) | Blue for water, yellow for gas |
| Joining Method | Butt fusion / Electrofusion / Socket fusion | Leak-proof joint connection |
Product Uses
1. Municipal Water and Gas Distribution Networks
This production line manufactures high-strength, corrosion-resistant PE pipes for urban water supply, natural gas distribution, and sewage systems. The pipes' flexibility and leak-proof jointing ensure reliable long-term performance in underground and trenchless installations.
2. Agricultural Irrigation and Drainage Systems
The line produces durable, cost-effective pipes for farmland irrigation, water-saving drip systems, and drainage projects. Their resistance to chemicals and UV radiation makes them ideal for long-term outdoor use in various agricultural environments.
3. Industrial and Mining Applications
It supplies pipes for transporting industrial water, slurries, and mild chemicals in factories and mines. The abrasion-resistant and pressure-rated pipes support demanding operations, including tailing lines and compressed air systems.
4. Geothermal and Renewable Energy Projects
The pipes are used in ground-source heat pump systems for geothermal energy exchange. Their thermal stability and flexibility allow efficient installation in vertical boreholes or horizontal loops for sustainable heating and cooling solutions.
