Single Layer Corrugated Pipe Extrusion Line

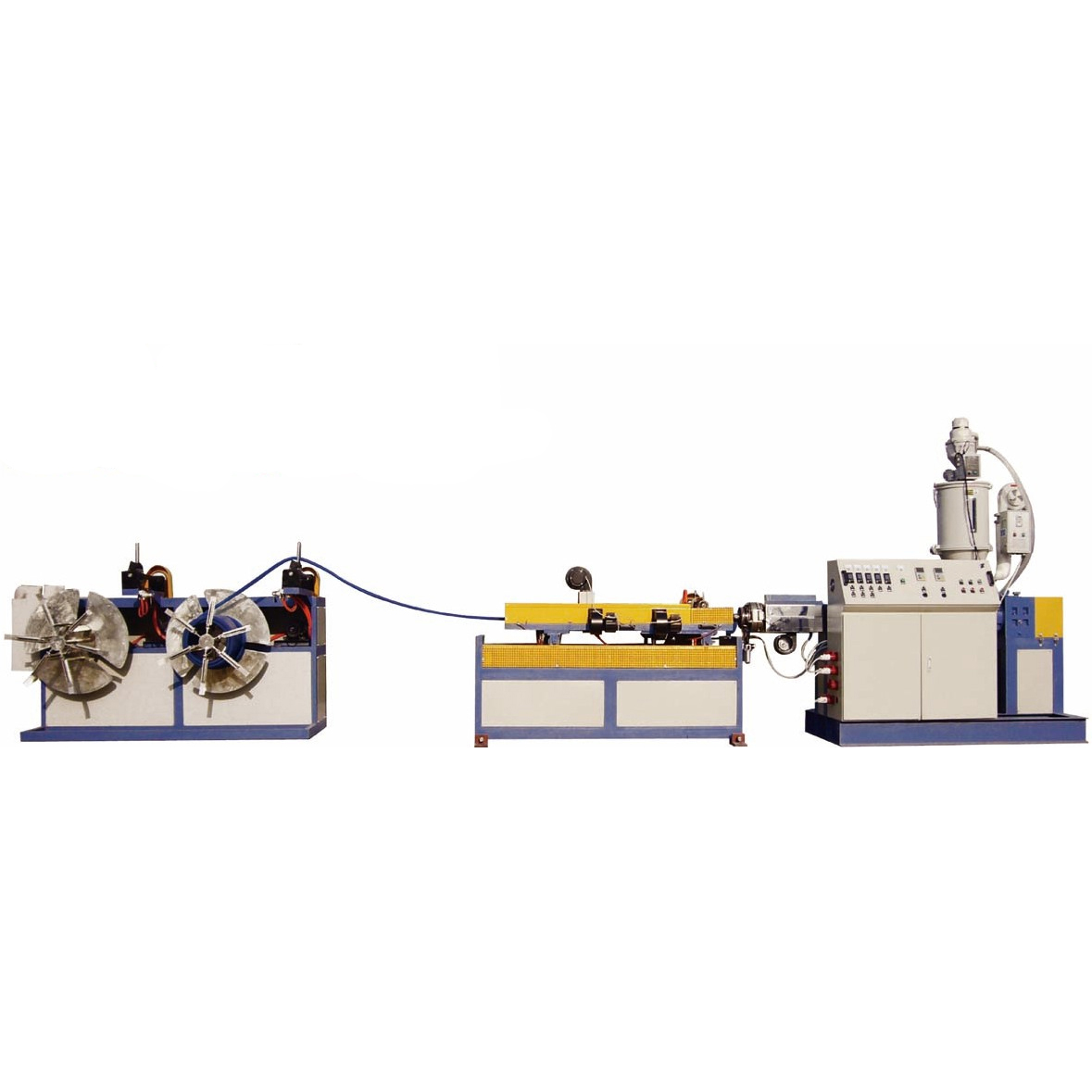

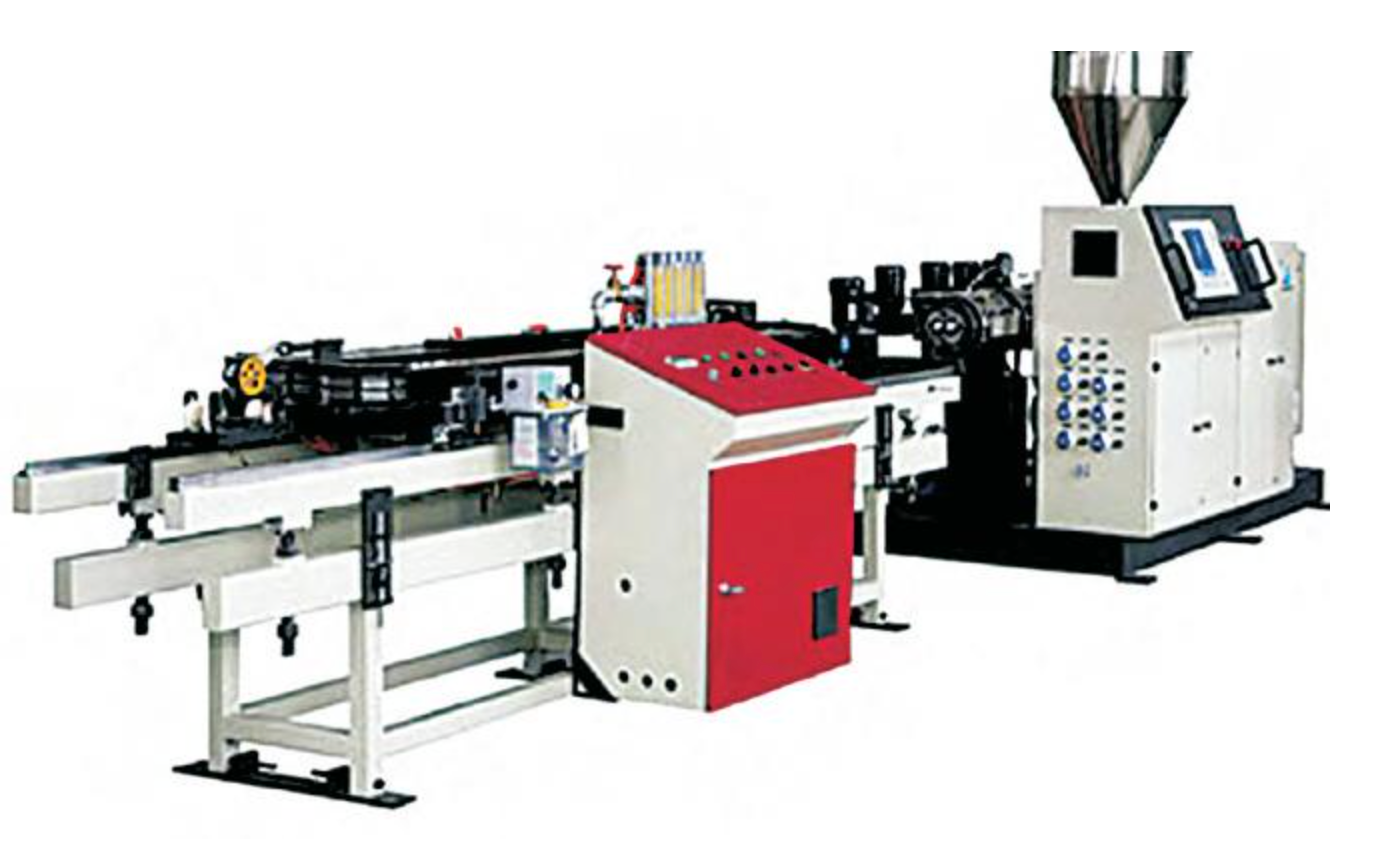

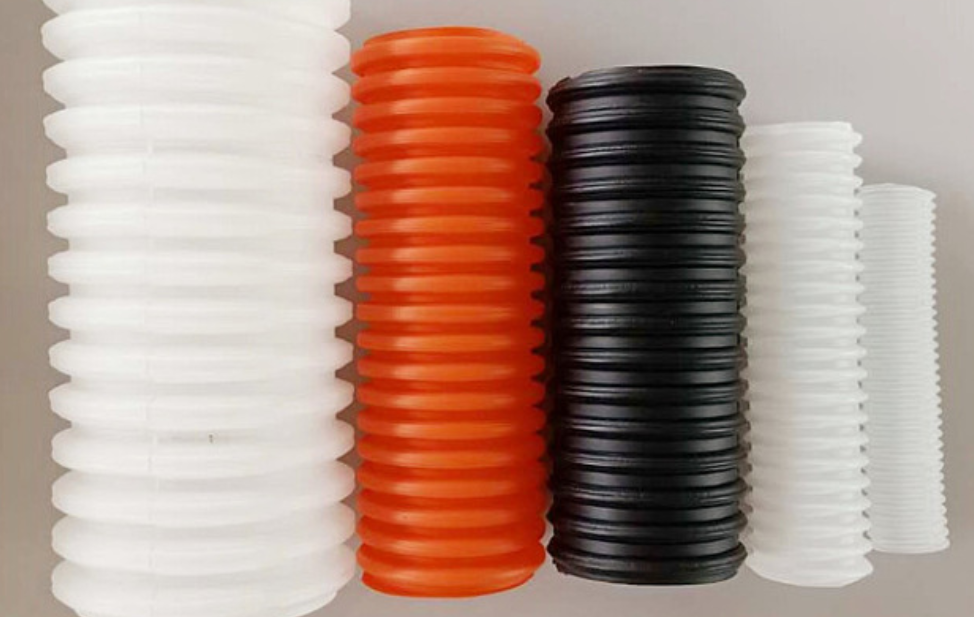

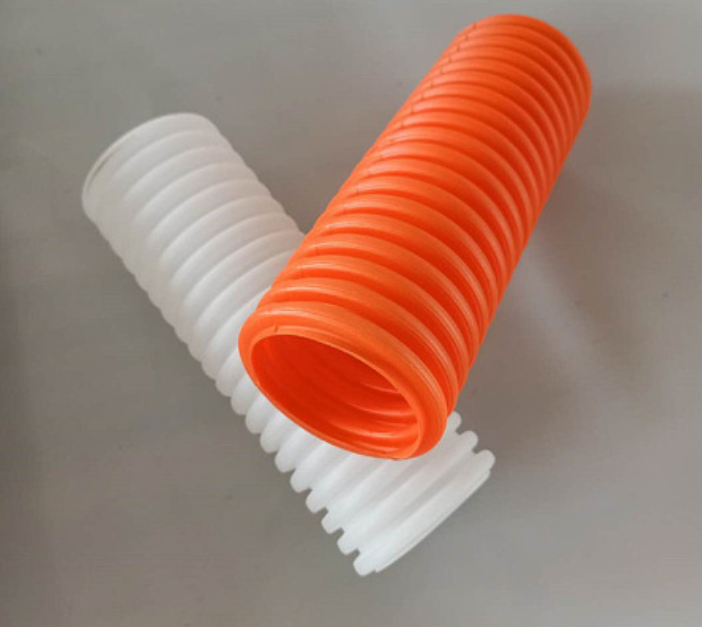

The single-wall corrugated pipe production line is a specialized system for manufacturing flexible, lightweight drainage and conduit pipes. It continuously extrudes HDPE/PP material into a precise corrugated outer structure and smooth inner wall through a vacuum forming process. The produced pipes offer high ring stiffness, excellent chemical resistance, and are widely used for underground cable protection, drainage, and agricultural applications.

1.High-Efficiency & High-Speed Production

This line integrates a high-torque extruder and a precision forming module, The stable output ensures high daily capacity, significantly reducing production costs and meeting demands for large-volume orders efficiently.

2.Precision Corrugation with Excellent Rigidity

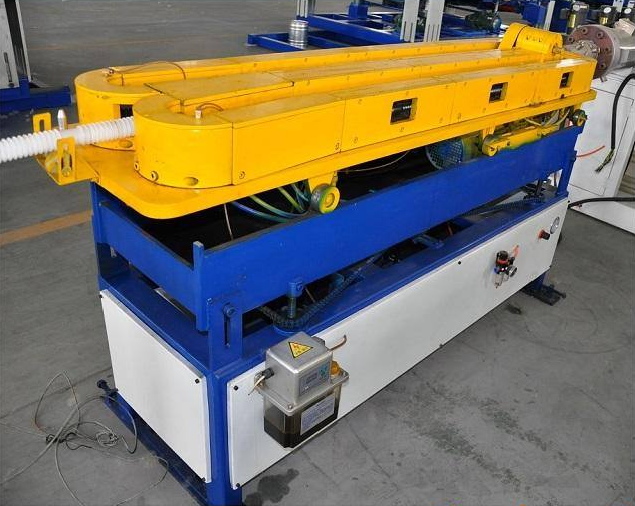

Utilizing an advanced vacuum forming system and modular corrugation molds, the line produces pipes with uniform wave structure and precise dimensions. This design enhances the pipe's ring stiffness (up to SN8), ensuring reliable performance in underground drainage and protection applications.

3.Automated Control and Energy-Saving Design

Equipped with a centralized PLC and touch-screen HMI, the line allows easy parameter adjustment and real-time monitoring. The optimized heating and drive systems reduce energy consumption by up to 20%, while automated cutting and coiling minimize labor requirements and operational costs.

1. Underground Cable Conduit & Telecommunication Protection

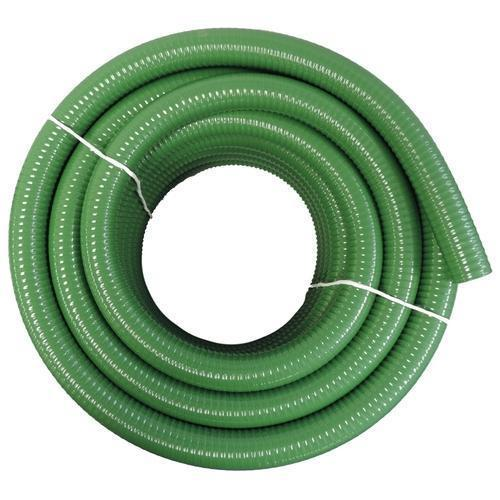

This line produces flexible, high-strength corrugated pipes widely used to protect fiber optic cables, electrical wires, and telecommunication lines during direct burial or duct installation, safeguarding infrastructure from moisture and mechanical damage.

2. Land Drainage & Stormwater Management Systems

The pipes are essential for agricultural field drainage, highway and railway subsurface drainage, and urban stormwater collection. Their lightweight design and excellent water flow capacity enable efficient installation and long-term performance.

3. Building & Construction Drainage Networks

Used for foundation perimeter drainage, roof gutter downspouts, and venting systems in residential and commercial projects. The pipes’ corrosion resistance and durability ensure reliable operation within building structures.

4. Industrial Effluent & Ventilation Ducting

Suitable for non-pressure drainage in factories, warehouses, and greenhouse ventilation systems. The chemical-resistant pipes can handle mild industrial effluents and provide cost-effective airflow solutions.
